Enerpac Flange Alignment Tools

Flange alignment tools are developed to rectify twist and rotational misalignment without additional stress in pipelines. Hydraulic cylinders, jacks, and lifting wedges can also be used to assist in positioning and aligning. Enerpacs’ range of tools can be used to align or re-align flange joints during pipework construction, commissioning or during routine maintenance. The tool is attached to the flange joint where misalignment is at its greatest and then simply push and pull the flanges into correct alignment.

The Enerpac range includes Mechanical, Hydraulic, and Wind Turbine Flange Alignment Sets.

Mechanical Flange Alignment Tools

Hydraulic Flange Alignment Tools

Wind Turbine Flange Alignment Tools

The Enerpac range includes Mechanical, Hydraulic, and Wind Turbine Flange Alignment Sets.

Enerpac ATM-Series Tools

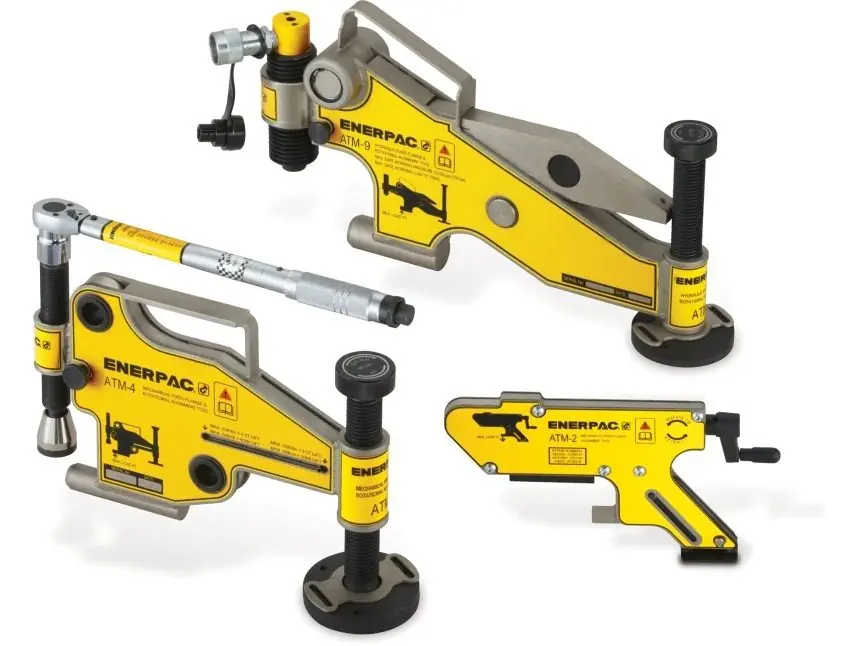

The Enerpac ATM-Series tools rectify twist and rotational misalignment quickly, safely and without the need for an external power source. The range is appropriate for use on most ANSI, API, BS and DIN flanges and reduces set-up time as no need for chains, pulleys or rigs. Portable, lightweight design enables easy transport and use, even in remote locations. Plus the ATM-Series can be installed and used in any position.

Extendable wing provides usage on wide variety of flanges

Portable, light weight design enables easy transport and use

Hand-adjustable base for easy positioning by a single operator

Safety strap helps provide secure operation from a horizontal or vertical position
The ATM9 includes a P142 hand pump and HC7206C 1,8 m long hose. GP10S pressure gauge and GA4 gauge adaptor recommended

The Enerpac ATM-Series tools help correct flange misalignment, and allow bolts to be placed into joints . This alignment takes place during pipework construction, or maintenance. These tools provide pipe installers and maintenance personnel with some of the simplest, safest and most productive solutions available for flange alignment in the market today.

Wind Turbine Flange Alignment Tools

Enerpac provides a range of Wind Turbine Flange Alignment Tools including:

TFA4TMSTD, 4 Metric Ton, Mechanical Wind Turbine Flange Alignment Tool Set
TFA12TEMIN, 12 Metric Ton, External Hydraulic Wind Turbine Flange Alignment Tool Set
TFA15TEMIN, 15 Metric Ton, External Hydraulic Wind Turbine Flange Alignment Tool Set
TFA12TISTD, 12 Metric Ton, Integral Hydraulic Wind Turbine Flange Alignment Tool Set
TFA15TISTD, 15 Metric Ton, Integral Hydraulic Wind Turbine Flange Alignment Tool Set

Enerpac Mechanical Flange Alignment.

Enerpac offers a range of mechanical flange alignment tools depending on diameter and pressure including

The FA1TM Mechanical Flange Alignment Tool is a simple solution to smaller diameter lower pressure flange joint misalignment.
The FA1TMSTD Set includes:

1 x FA1TM Tool
1 x Mini Ratchet Strap
1 x Instruction Manual

The FA4TM Mechanical Linear & Rotational Alignment Tool is a simple solution to medium diameter, medium pressure flange joint misalignment.
The FA4TMSTD Set includes:

1 x FA4TM Tool
1 x 68Nm (50ft.lb) Torque Wrench
1 x 22mm Socket
1 x Ratchet Strap
1 x Instruction Manual
1 x Carry-Case
